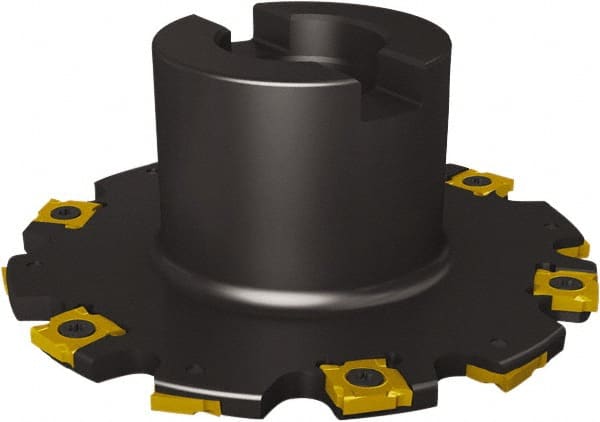

Seco - Shell Mount Connection, 5/16" Cutting Width, 0.91" Depth of Cut, 101.6mm Cutter Diam, 1" Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 12045L, SNHQ 12045R Insert, Right Hand Cutting Direction
Item #: 53096335
Brand: Seco
Model #: 82035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 7.92 |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (mm) | 23.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.9100 |
| Cutter Diameter (mm) | 101.60 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 5 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 12045L; SNHQ 12045R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 7500 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3819 |
| Keyway Width (mm) | 9.70 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.19-04.00-0.31-5 |
| Complete Insert Compatibility2 | SNHQ 12045L-MM4500-M07; SNHQ 12045L-MP2500-M07; SNHQ 12045R-F30M-M07; SNHQ 12045R-F40M-M07; SNHQ 12045R-MM4500-M07; SNHQ 12045R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 12045L-F30M-M07; SNHQ 12045L-F40M-E05; SNHQ 12045L-F40M-M07; SNHQ 12045L-H25M-E05; SNHQ 12045R-F40M-E05; SNHQ 12045R-H25M-E05 |
