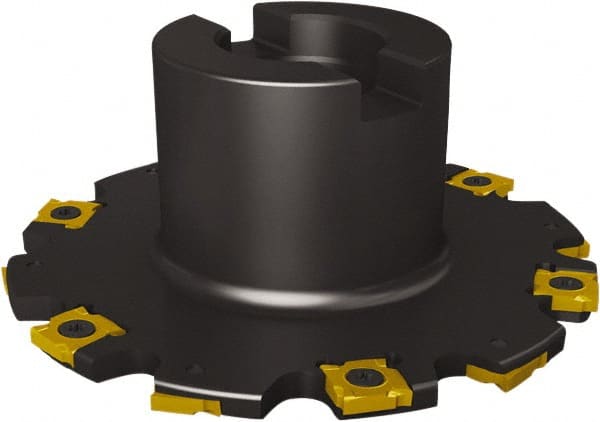

Seco - Shell Mount Connection, 1/4" Cutting Width, 1.22" Depth of Cut, 152.4mm Cutter Diam, 1-1/2" Hole Diam, 7 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1204L, SNHQ 1204R Insert, Right Hand Cutting Direction
Item #: 53096343
Brand: Seco
Model #: 82034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 30.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.2200 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 7 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1204L; SNHQ 1204R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10700 |
| Hub Diameter (mm) | 69.85 |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Keyway Width (Decimal Inch) | 0.6299 |
| Keyway Width (mm) | 16.00 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.19-06.00-0.25-7 |
| Complete Insert Compatibility2 | SNHQ 1204L-MM4500-M07; SNHQ 1204L-MP2500-M07; SNHQ 1204R-F30M-M07; SNHQ 1204R-F40M-M07; SNHQ 1204R-MM4500-M07; SNHQ 1204R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1204L-F30M-M07; SNHQ 1204L-F40M-E05; SNHQ 1204L-F40M-M07; SNHQ 1204L-H25M-E05; SNHQ 1204R-F40M-E05; SNHQ 1204R-H25M-E05 |
