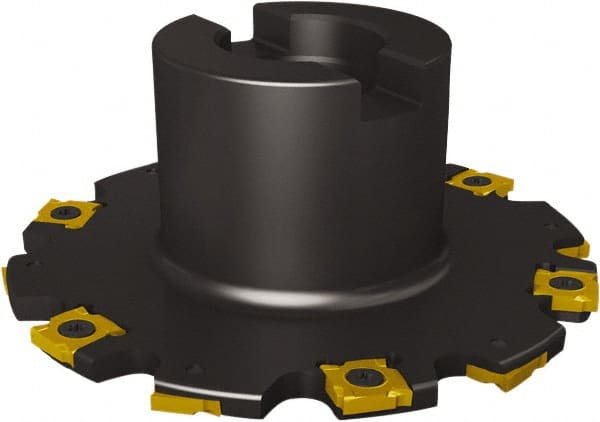

Seco - Shell Mount Connection, 1/4" Cutting Width, 1.22" Depth of Cut, 127mm Cutter Diam, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1204L, SNHQ 1204R Insert, Right Hand Cutting Direction
Item #: 53096350
Brand: Seco
Model #: 82032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 30.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.2200 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1204L; SNHQ 1204R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12000 |
| Hub Diameter (mm) | 57.15 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Keyway Width (Decimal Inch) | 0.5098 |
| Keyway Width (mm) | 12.95 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.0000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.19-05.00-0.25-6 |
| Complete Insert Compatibility2 | SNHQ 1204L-MM4500-M07; SNHQ 1204L-MP2500-M07; SNHQ 1204R-F30M-M07; SNHQ 1204R-F40M-M07; SNHQ 1204R-MM4500-M07; SNHQ 1204R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1204L-F30M-M07; SNHQ 1204L-F40M-E05; SNHQ 1204L-F40M-M07; SNHQ 1204L-H25M-E05; SNHQ 1204R-F40M-E05; SNHQ 1204R-H25M-E05 |
