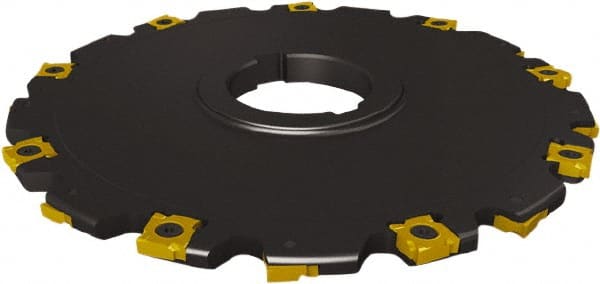

Seco - Arbor Hole Connection, 1/2" Cutting Width, 2" Depth of Cut, 152.4mm Cutter Diam, 1-1/4" Hole Diam, 7 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1207L, SNHQ 1207R Insert, Right Hand Cutting Direction
Item #: 53096400
Brand: Seco
Model #: 82025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.70 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 50.80 |
| Maximum Depth of Cut (Decimal Inch) | 2.0000 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 7 |
| Toolholder Style | 335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1207L; SNHQ 1207R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4700 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Radius | No |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.19-06.00-0.50-7 |
| Complete Insert Compatibility2 | SNHQ 1207L-MM4500-M07; SNHQ 1207L-MP2500-M07; SNHQ 1207R-F30M-M07; SNHQ 1207R-F40M-M07; SNHQ 1207R-MM4500-M07; SNHQ 1207R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1207L-F30M-M07; SNHQ 1207L-F40M-E05; SNHQ 1207L-F40M-M07; SNHQ 1207L-H25M-E05; SNHQ 1207R-F40M-E05; SNHQ 1207R-H25M-E05 |
