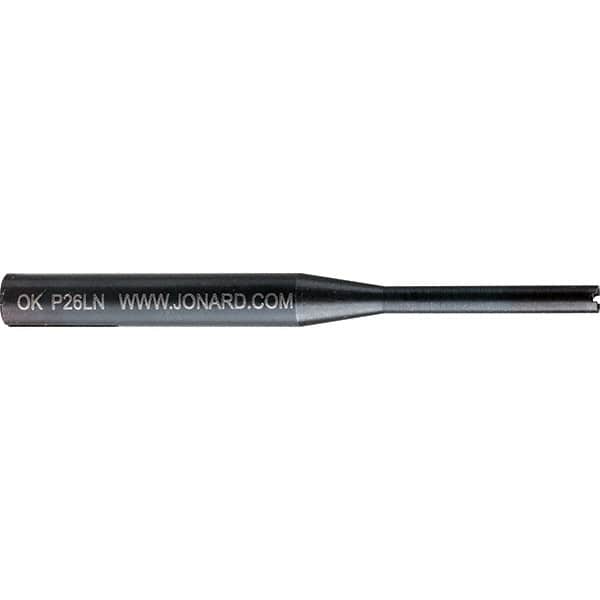

OK Industries - 26 AWG Compatible Wire, 3 Inch Long Modified Wire Wrapping Sleeve - 0.031 Inch Diameter, 0.79mm Diameter, 3/4 Inch Deep
Item #: 53127114
Brand: OK Industries
Model #: P26LN
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Product Type | Wire Wrapping Sleeve |
| Maximum Compatible Wire Size (AWG) | 26 |
| Wrap Type | Modified |
| Overall Length (mm) | 76.20 |
| Overall Length (Decimal Inch) | 3 |
| Maximum Insulation Diameter (Decimal Inch) | 0.0310 |
| Maximum Insulation Diameter (mm) | 0.79 |
| Terminal Hole Depth (Decimal Inch) | 3/4 |
| Terminal Hole Depth (mm) | 19.05 |
| Terminal Hole Diameter (mm) | 1.11 |
| Terminal Hole Diameter (Decimal Inch) | 0.0440 |
| For Use With | Wire Wrapping Tool |
| PSC Code | 5120 |
