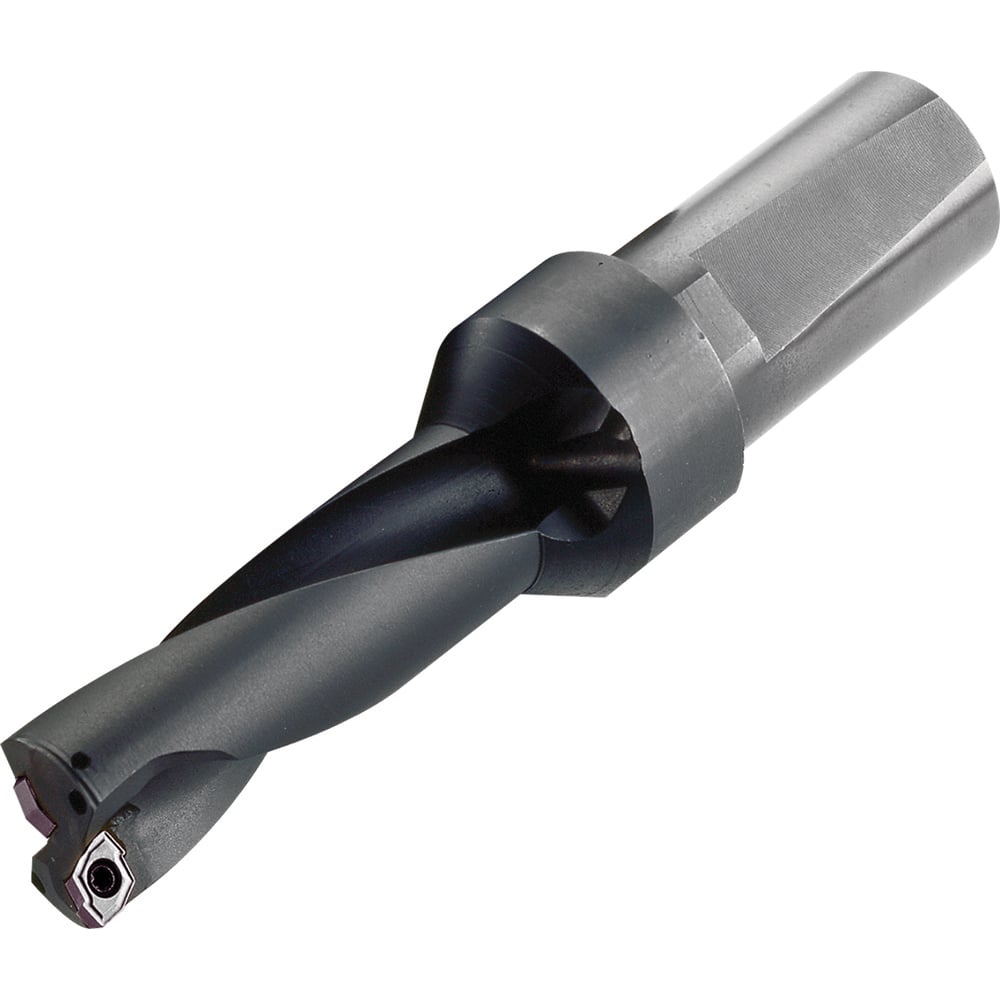

Kyocera - Indexable Insert Drills; Drill Style: DRZ ; Drill Diameter (Inch): 1.125 ; Maximum Drill Depth (Inch): 2.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
Item #: 53131066
Brand: Kyocera
Model #: 8603884
Product Specifications
Indexable Insert Drills; Drill Style: DRZ ; Drill Diameter (Inch): 1.125 ; Maximum Drill Depth (Inch): 2.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
| Drill Style | DRZ |
| Drill Diameter (Inch) | 1.125 |
| Maximum Drill Depth (Inch) | 2.25 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1250 |
| Overall Length/Projection (Decimal Inch) | 5.7400 |
| Insert Compatibility | ZCMT |
| Flute Length (Decimal Inch) | 2.2500 |
| Body Length (Decimal Inch) | 3.6200 |
| Shank Length (Decimal Inch) | 2.1200 |
| Collar Diameter (Decimal Inch) | 1.6500 |
