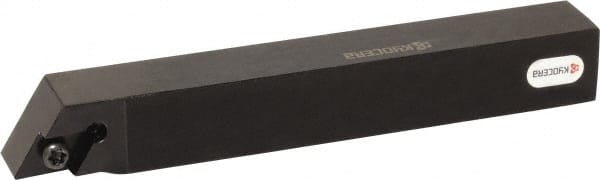

Kyocera - SDJC, Right Hand Cut, 93° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 120mm OAL, DC.. 325.. Insert Compatibility, Series SDJC
Item #: 53195657
Brand: Kyocera
Model #: 8835067
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDJC |
| Rake | Neutral |
| Rake Angle | 0 (Radial) |
| Series | SDJC |
| Lead Angle | 93 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | DC.. 325.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
