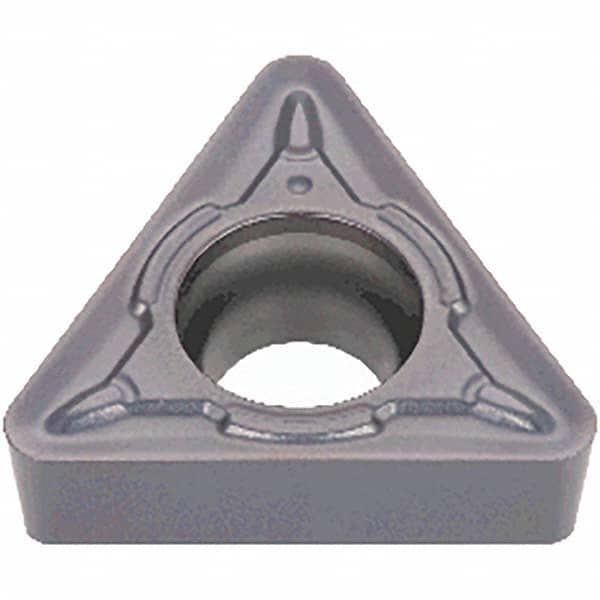

Turning Insert
Item #: 53240669
Brand: Tungaloy
Model #: 6856717
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 110204 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | AH725 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 3.00 |
| Inscribed Circle (mm) | 6.35 |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 7 |
| Series | TCMT |
| Rake | Positive |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TCMT110204-PM |
| Standards | ISO |
| Chip Breaker | PM |
| Coating/Finish | Coated |
