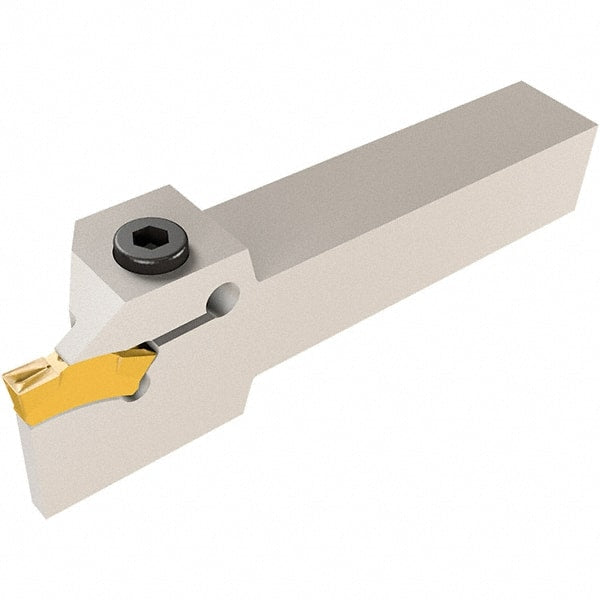

Iscar - TGD, External, Right Hand, 15.5mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - TGMF.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 140mm OAL
Item #: 53245510
Brand: Iscar
Model #: 2850090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 15.50 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 140.00 |
| Toolholder Style | TGD |
| Insert Compatibility | TGMF.. |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Top Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 23.20 |
| Head Length (mm) | 34.00 |
| Shank Length (mm) | 106.00 |
| Complete Insert Compatibility | TGMF (Full Radius); TGMF/P |
