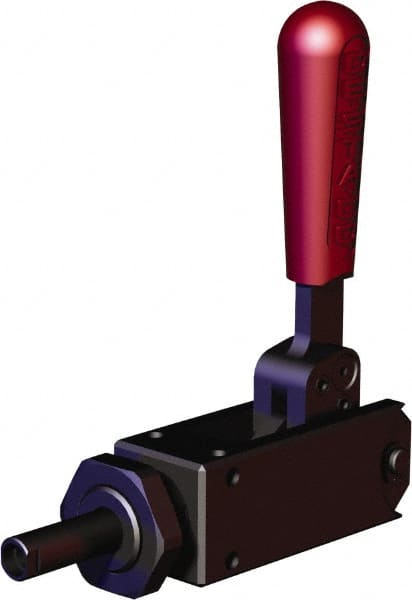

De-Sta-Co - 1,124.05 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 2 Mounting Holes, 0.22" Mounting Hole Diam, 0.35" Plunger Diam, Straight Handle
Item #: 53248837
Brand: De-Sta-Co
Model #: 614-M
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 5000.00 |
| Load Capacity (Lb.) | 1124.05 |
| Plunger Travel (mm) | 32.00 |
| Plunger Travel (Decimal Inch) | 1.2600 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M8x1.25 |
| Plunger Centerline Height (mm) | 17.53 |
| Plunger Centerline Height (Decimal Inch) | 0.6900 |
| Plunger Diameter (Decimal Inch) | 0.3500 |
| Plunger Diameter (mm) | 8.89 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 5.7000 |
| Overall Height (Decimal Inch) | 6.0000 |
| Base Length (Decimal Inch) | 3.6600 |
| Base Width (Decimal Inch) | 1.3800 |
| Handle Color | Red |
| Number of Mounting Holes | 2 |
| Width Distance Between Mount Holes (mm) | 23.88 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.9400 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Base Width (mm) | 35.05 |
| Base Length (mm) | 92.96 |
| Overall Height (mm) | 152.40 |
| Jam Nut Height (mm) | 7.87 |
| Jam Nut Height (Decimal Inch) | 0.3100 |
| Jam Nut Hex Size (mm) | 36.07 |
| Jam Nut Hex Size (Decimal Inch) | 1.4200 |
| Jam Nut Thread Size | M24x1.5 |
