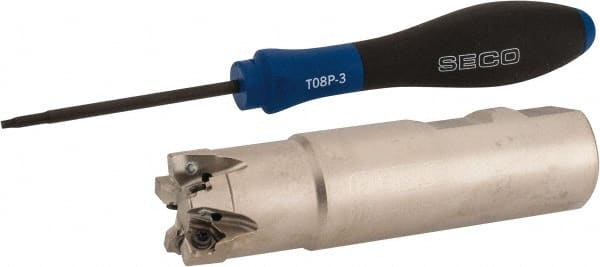

Seco - 1" Cut Diam, 0.157" Max Depth of Cut, 1" Shank Diam, 3.78" OAL, Indexable Square Shoulder End Mill - XNEX 04.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Square 6
Item #: 53382180
Brand: Seco
Model #: 68248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.7800 |
| Lead Angle | 90 |
| Series | Square 6 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.96-04 |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.1800 |
| Weldon Flat | Yes |
| Insert Compatibility | XNEX 04.. |
| Shank Length (Decimal Inch) | 2.5000 |
| Maximum RPM | 26300 |
| Toolholder Material | Steel |
