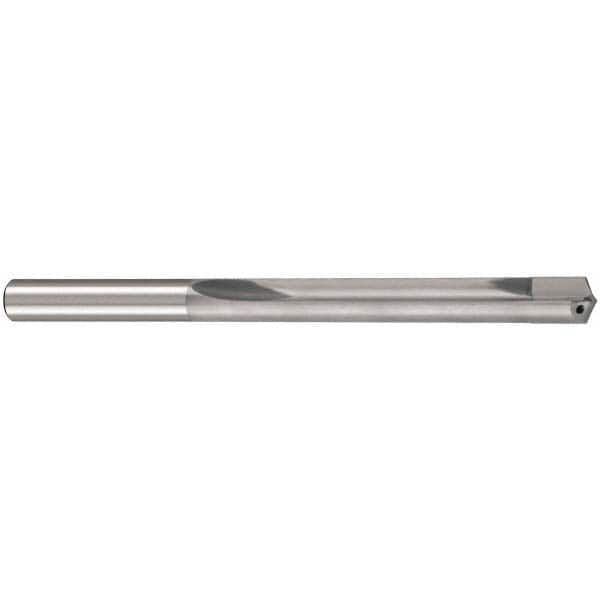

CJT - 5/16", 130° Point, Carbide-Tipped Straight Flute Drill Bit
Item #: 81224206
Brand: CJT
Model #: 17603125
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Carbide tips cut faster than high speed steel. It provides good heat and wear resistance.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 130 |
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (Decimal) | 0.3125 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | TiN |
| Overall Length (Inch) | 5-19/32 |
| Through Coolant | Yes |
| Flute Length (Inch) | 3-3/16 |
| Shank Diameter (Inch) | 19/64 |
| Number of Flutes | 2 |
| Point Type | Helical |
| Maximum Drilling Depth (Decimal Inch) | 2.30 |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Series/List | 176 |
