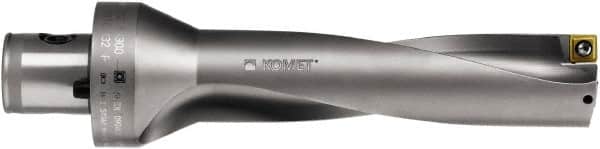

Komet - 2.126" Max Drill Depth, 3xD, 45/64" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 53416715
Brand: Komet
Model #: U1151790
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (Inch) | 45/64 |
| Drill Diameter (Decimal Inch) | 0.7031 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7220 |
| Overall Length/Projection (Decimal Inch) | 3.5040 |
| Insert Compatibility | SOEX 060306 |
| Body Length (Decimal Inch) | 3.5040 |
| Series | KUB Quatron |
