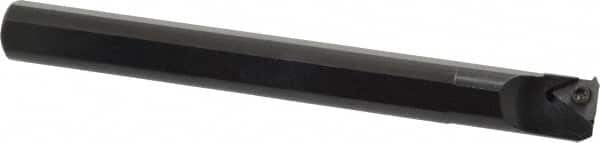

Hertel - Internal Thread, Right Hand Cut, 3/4" Shank Width Indexable Threading Toolholder - 7" OAL, 16IR Insert Compatibility, HSI Toolholder, Series HSIR
Item #: 53438719
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Insert Compatibility | 16IR |
| Series | HSIR |
| Toolholder Style | HSI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9000 |
| Center to Cutting Edge (Decimal Inch) | 0.5100 |
| Neck Diameter (Decimal Inch) | 0.7500 |
| Minimum Bore Diameter (Decimal Inch) | 0.9000 |
| Insert Inscribed Circle (Inch) | 3/8 |
