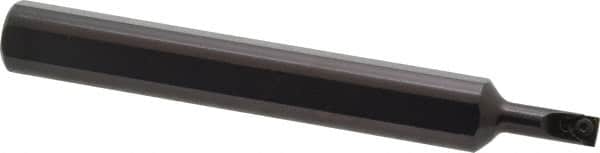

Hertel - Internal Thread, Right Hand Cut, 5/8" Shank Width Indexable Threading Toolholder - 5" OAL, 8IR Insert Compatibility, HSI Toolholder, Series HSIR
Item #: 53438768
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | 8IR |
| Series | HSIR |
| Toolholder Style | HSI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3070 |
| Center to Cutting Edge (Decimal Inch) | 0.2100 |
| Head Length (Decimal Inch) | 0.7000 |
| Insert Inscribed Circle (Inch) | 3/16 |
