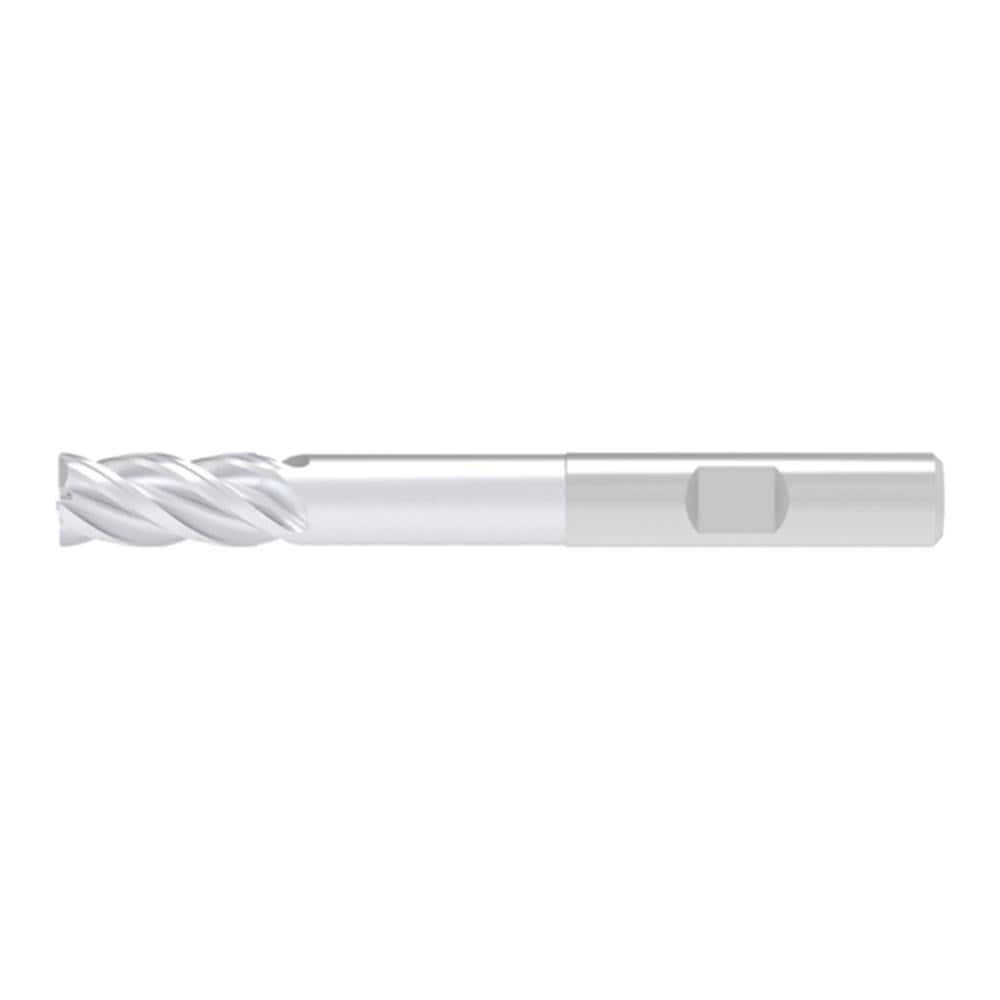

Corner Chamfer End Mill: 12.00 mm Dia, 25.00 mm LOC, 4 Flute, 0.30 mm Chamfer Width, Solid Carbide
Item #: 09248840
Brand: WNT
Model #: 5097512400
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 25.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DPB72S |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.30 |
| Overall Length (mm) | 109.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 12.00 |
| Neck Diameter (mm) | 11.600 |
| UNSPSC Code | 23241614 |
| Series | 50975 |
