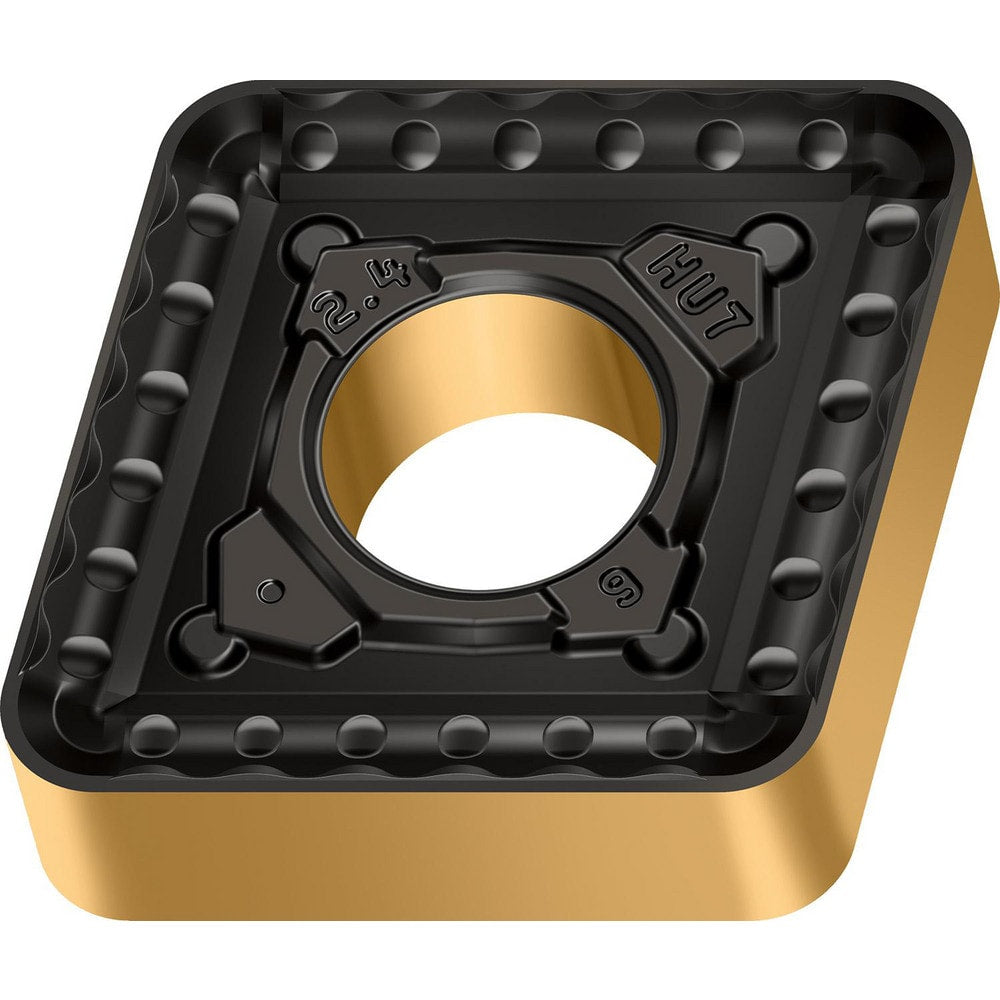

Turning Insert: CNMM866HU7 WPP30G, Carbide
Item #: 09389057
Brand: Walter
Model #: 8138434
Product Specifications
| ANSI Insert Code | CNMM866 |
| ISO Insert Code | CNMM250924 |
| Relief Angle | 0.000 |
| Insert Style | CNMM |
| Corner Radius (mm) | 2.40 |
| Included Angle | 80.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 9.53 |
| Series | CNMM |
| Inscribed Circle (mm) | 25.40 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Heavy Machining |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 9.1200 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 25.79 |
| Manufacturers Catalog Number | CNMM250924-HU7 WPP30G |
| Chip Breaker | HU7 |
| Width (mm - 2 Decimals) | 25.40 |
| ANSI Size Code | 866 |
| ISO Size Code | 250924 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 25 |
