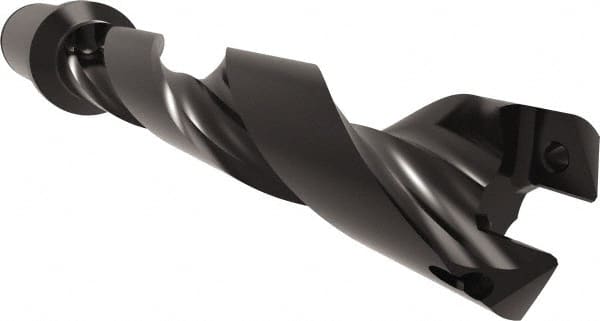

Allied Machine and Engineering - Series 29, 29 to 32mm Diam, 1-1/4" Diam Straight Shank with Flange, Helical Flute Spade Drill - 6-19/64" Max Depth, 7-29/32" Body Length, 10-3/16" OAL, Standard Length, Through Coolant
Item #: 53535936
Brand: Allied Machine and Engineering
Model #: 60529H-125C
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 29 |
| Minimum Drill Diameter (mm) | 29.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 10-3/16 |
| Overall Length (Decimal Inch) | 10.1875 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Inch) | 6-19/64 |
| Maximum Drill Depth (Decimal Inch) | 6.2969 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 7-29/32 |
| Body Length (Decimal Inch) | 7.9063 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
