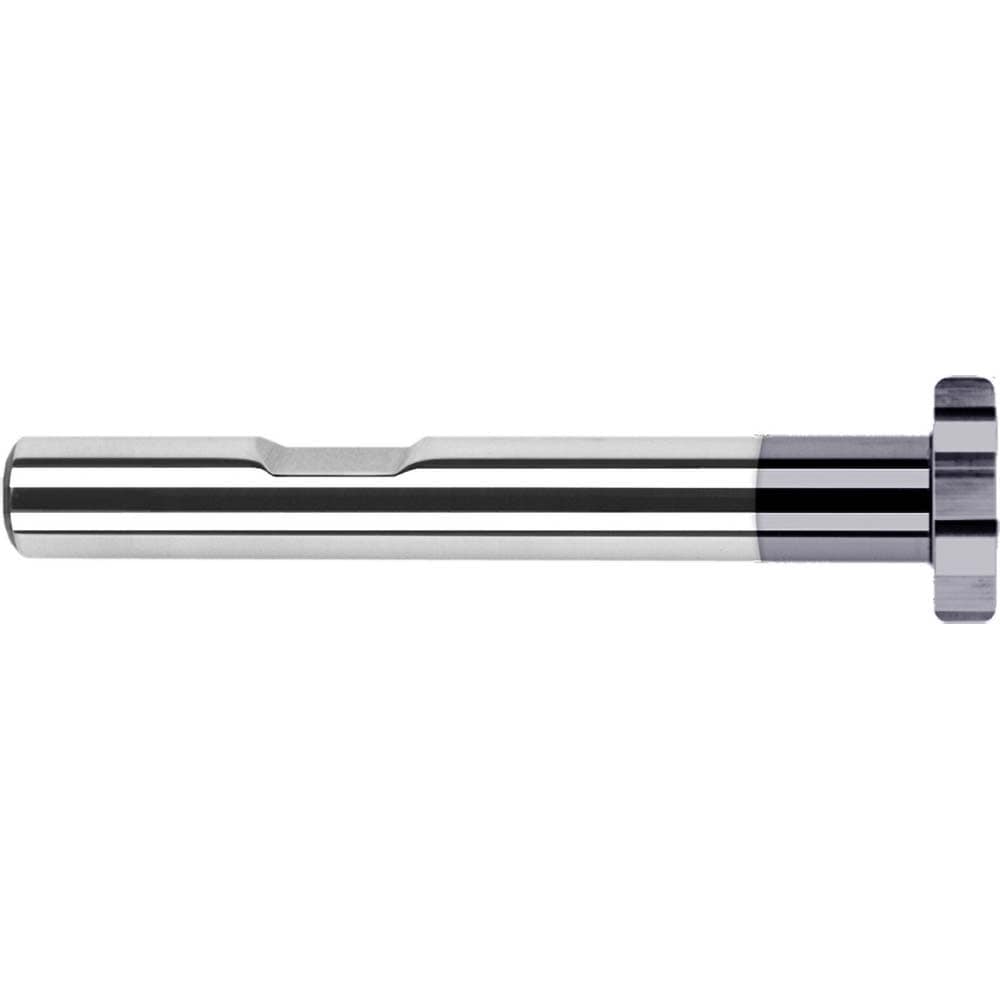

Woodruff Keyseat Cutter: 1/2" Cut Dia, 3/16" Cut Width, 1/4" Shank Dia, Straight Tooth
Item #: 93279396
Brand: Harvey Tool
Model #: 721970-C3
Product Specifications
| Connection Type | Shank |
| Cutter Material | Brazed Solid Carbide |
| Cutter Diameter (mm) | 12.70 |
| Cutter Diameter (Inch) | 1/2 |
| Cutter Diameter (Decimal Inch) | 0.5000 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Weldon Flat | Yes |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 3-3/16 |
| Overall Length (Decimal Inch) | 3.1870 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Coating/Finish | AlTiN |
| Number Of Teeth | 8 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
