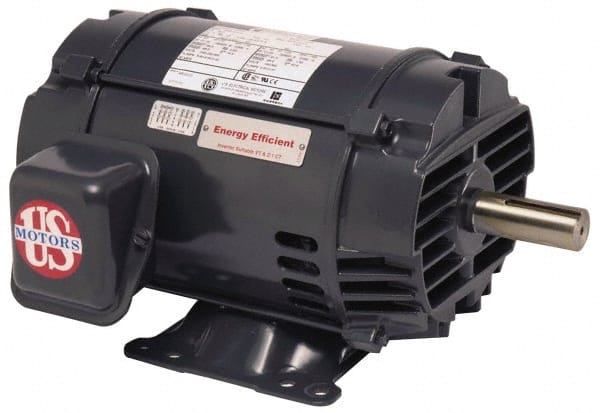

US Motors - 5 hp, ODP Enclosure, No Thermal Protection, 3,505 RPM, 200 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 15.2 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 53650511
Brand: US Motors
Model #: D5S1H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | ODP |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3505 |
| Voltage | 200 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 15.2 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 15.0000 |
| Full Load Efficiency Rating | 85.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
