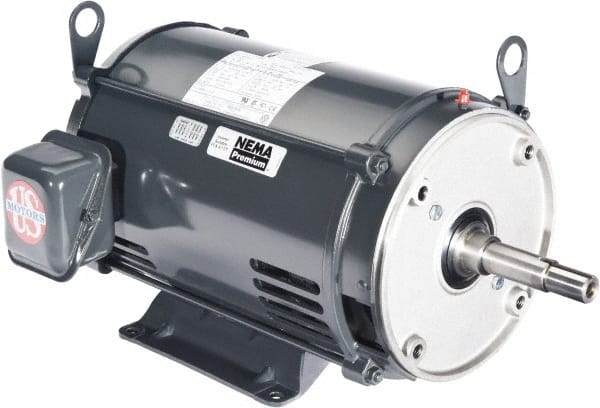

US Motors - 7-1/2 hp, ODP Enclosure, No Thermal Protection, 1,760 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 213 Frame, Rigid Mount, 1 Speed, Ball Bearings, 7.6 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 53653424
Brand: US Motors
Model #: DJ7E2GM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 7-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1760 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 213 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 7.6 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 17.7500 |
| Full Load Efficiency Rating | 88.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
