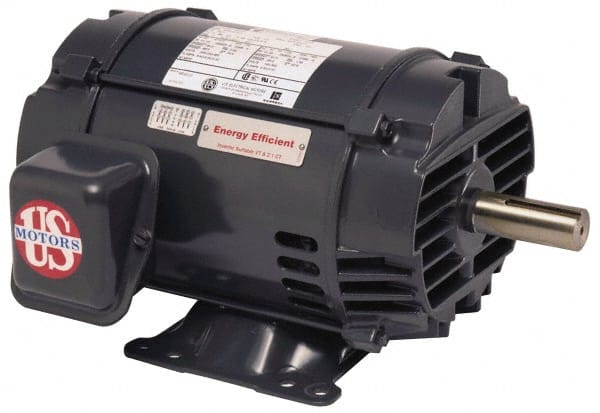

US Motors - 50 hp, ODP Enclosure, No Thermal Protection, 3,560 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 324 Frame, Rigid Mount, 1 Speed, Ball Bearings, 46 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 53654802
Brand: US Motors
Model #: FF50E1GS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 50 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3560 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 324 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 46 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 25.7500 |
| Full Load Efficiency Rating | 92.4 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
