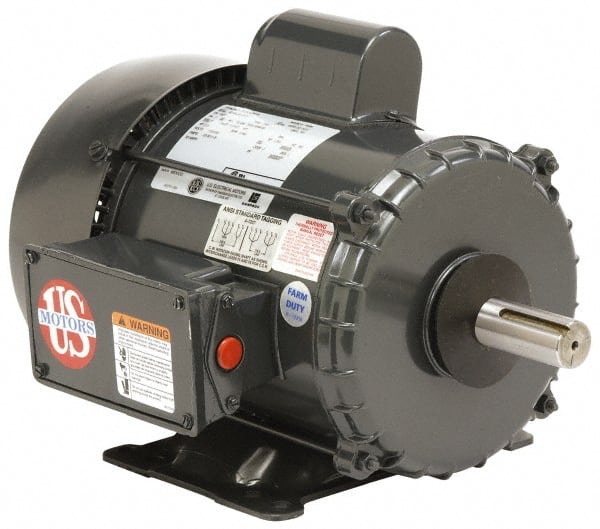

US Motors - 1.5 hp, TENV Enclosure, Auto Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 143 Frame, Rigid Base Mount, 1 Speed, Ball Bearings, 17.4/8.7 Full Load Amps, B Class Insulation, CCW Lead End Rev
Item #: 53655114
Brand: US Motors
Model #: FD32CA1P14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TENV |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 143 |
| Mount Type | Rigid Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 17.4/8.7 |
| Insulation Class | B |
| Full Load Efficiency Rating | 81.60 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End Rev |
| PSC Code | 6105 |
