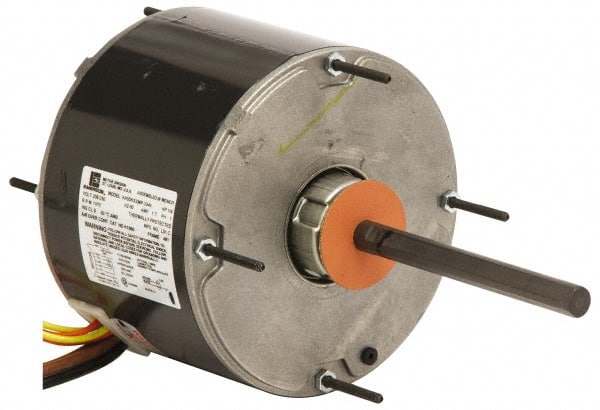

US Motors - 1/4 hp, TENV Enclosure, Auto Thermal Protection, 825 RPM, 208/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 1 Speed, Sleeve Bearings, 2.0 Full Load Amps, B Class Insulation, Reversible
Item #: 53655163
Brand: US Motors
Model #: 1874
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TENV |
| Horsepower | 1/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 825 |
| Voltage | 208/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 2.0 |
| Insulation Class | B |
| Full Load Efficiency Rating | 18.20 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
