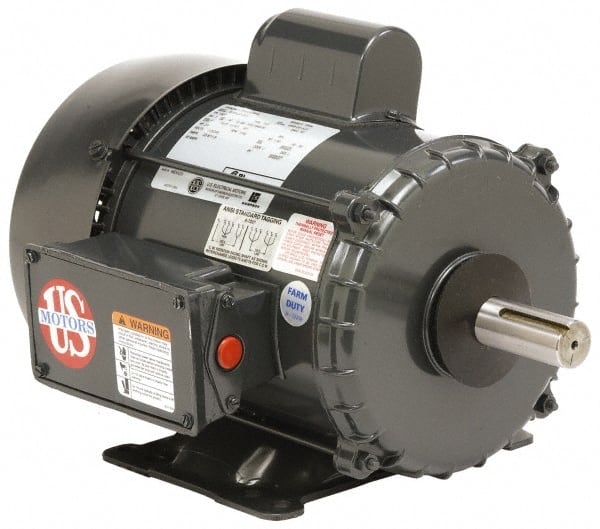

US Motors - 1.5 hp, TEFC Enclosure, Manual Thermal Protection, 1,745 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 143 Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.2/9.6 Full Load Amps, F Class Insulation, Reversible
Item #: 53655924
Brand: US Motors
Model #: FDU32CM2P14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | Manual |
| Name Plate RPMs | 1745 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 143 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 19.2/9.6 |
| Insulation Class | F |
| Full Load Efficiency Rating | 78.90 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
