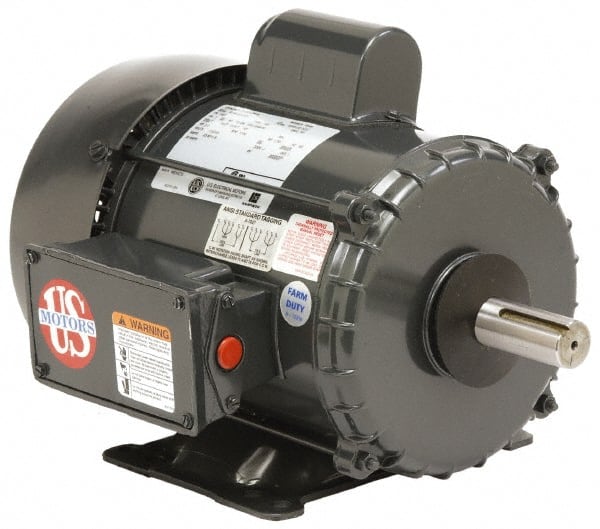

US Motors - 2 hp, TEFC Enclosure, 1,740 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 182 Frame, Horizontal-Footed Mount, 1 Speed, Ball Bearings, 23.6/11.8 Full Load Amps, F Class Insulation
Item #: 53656104
Brand: US Motors
Model #: FD2CM2P18
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEFC |
| Horsepower | 2 |
| Name Plate RPMs | 1740 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 23.6/11.8 |
| Insulation Class | F |
| Full Load Efficiency Rating | 0.00 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
