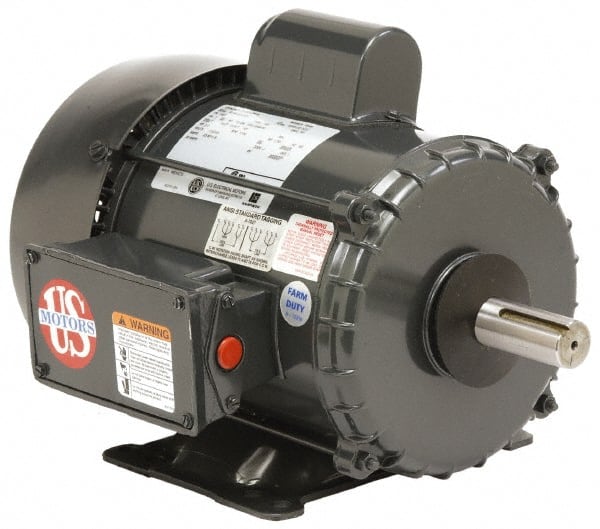

US Motors - 7-1/2 hp, TEFC Enclosure, 1,740 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 215 Frame, Horizontal-Footed Mount, 1 Speed, Ball Bearings, 30.0 Full Load Amps, F Class Insulation
Item #: 53656245
Brand: US Motors
Model #: FD7CM2K21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEFC |
| Horsepower | 7-1/2 |
| Name Plate RPMs | 1740 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 215 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 30.0 |
| Insulation Class | F |
| Full Load Efficiency Rating | 0.00 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
