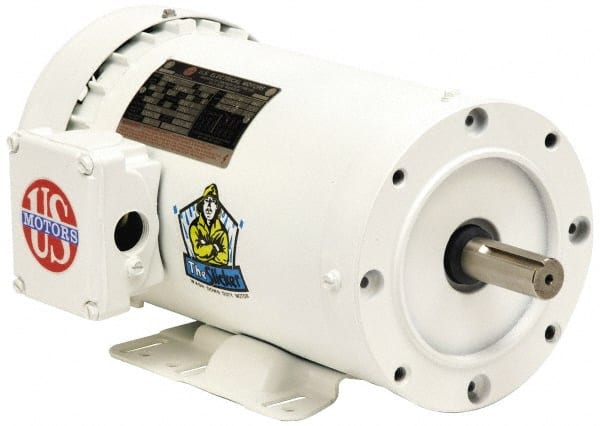

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 15.6/7.8 Full Load Amps, F Class Insulation, Reversible
Item #: 53656542
Brand: US Motors
Model #: WD32C1PC*
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | C-Face/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 15.6/7.8 |
| Insulation Class | F |
| Full Load Efficiency Rating | 83.30 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
