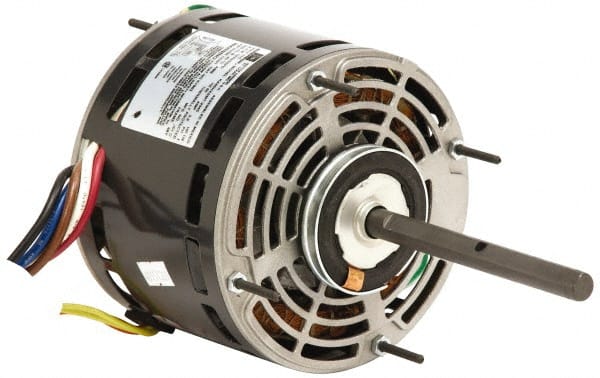

US Motors - 1/5 hp, OAO Enclosure, Auto Thermal Protection, 970 RPM, 277 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Bracket Mount, 3 Speed, Sleeve Bearings, 0.8 Full Load Amps, A Class Insulation, CW Lead End
Item #: 53657250
Brand: US Motors
Model #: 1680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | OAO |
| Horsepower | 1/5 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 970 |
| Voltage | 277 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Bracket |
| Number of Speeds | 3 |
| Bearing Type | Sleeve |
| Full Load Amperage | 0.8 |
| Insulation Class | A |
| Full Load Efficiency Rating | 56.10 |
| Motor Run Capacitor Micro Farid | 5.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
