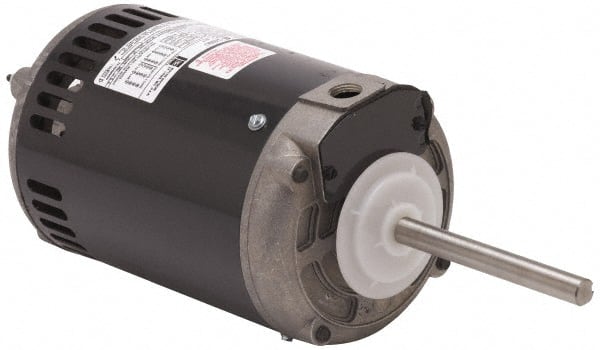

US Motors - 1 hp, OPAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230/460 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 5.8-5.4/2.7 Full Load Amps, B Class Insulation, CCW Lead End Rev
Item #: 53657557
Brand: US Motors
Model #: 8431
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | OPAO |
| Horsepower | 1 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Hub/Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 5.8-5.4/2.7 |
| Insulation Class | B |
| Shaft Diameter x Length (Inch) | 5/8 x 6 |
| Full Load Efficiency Rating | 80.00 |
| Motor Run Capacitor Micro Farid | 12.50 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | CCW Lead End Rev |
| PSC Code | 6105 |
