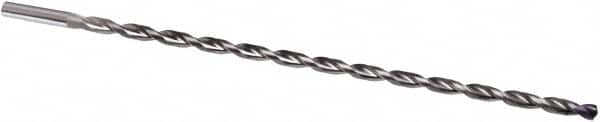

Extra Length Drill Bit: 0.3438″ Dia, 135 °, Solid Carbide TiAlN Finish, Spiral Flute, Straight-Cylindrical Shank, Series 6509
Item #: 53725511
Brand: Guhring
Model #: 9065090087300
Product Specifications
| Overall Length (mm) | 204.00 |
| Flute Length (mm) | 160.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6509 |
| Point Type | RT100 T |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; N |
| Standards | California PROP 65 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 5.7840 |
| Maximum Drilling Depth (mm) | 146.91 |
