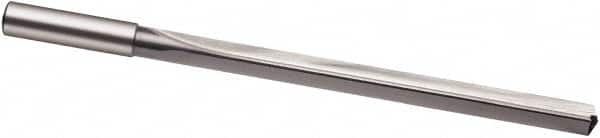

Die Drill Bit: 0.5118″ Dia, 130 °, Solid Carbide Bright Finish, Series 6070
Item #: 53728614
Brand: Guhring
Model #: 9060700130000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 13.00 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (mm) | 183.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 233.00 |
| Shank Diameter (mm) | 14.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Material Grade | Sub Micrograin |
| Series | 6070 |
| Number Of Flutes | 2 |
| Point Type | Special |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Cast Iron |
| Secondary Workpiece Material | Cast Iron |
| Flute By Diameter Ratio | 10xD |
