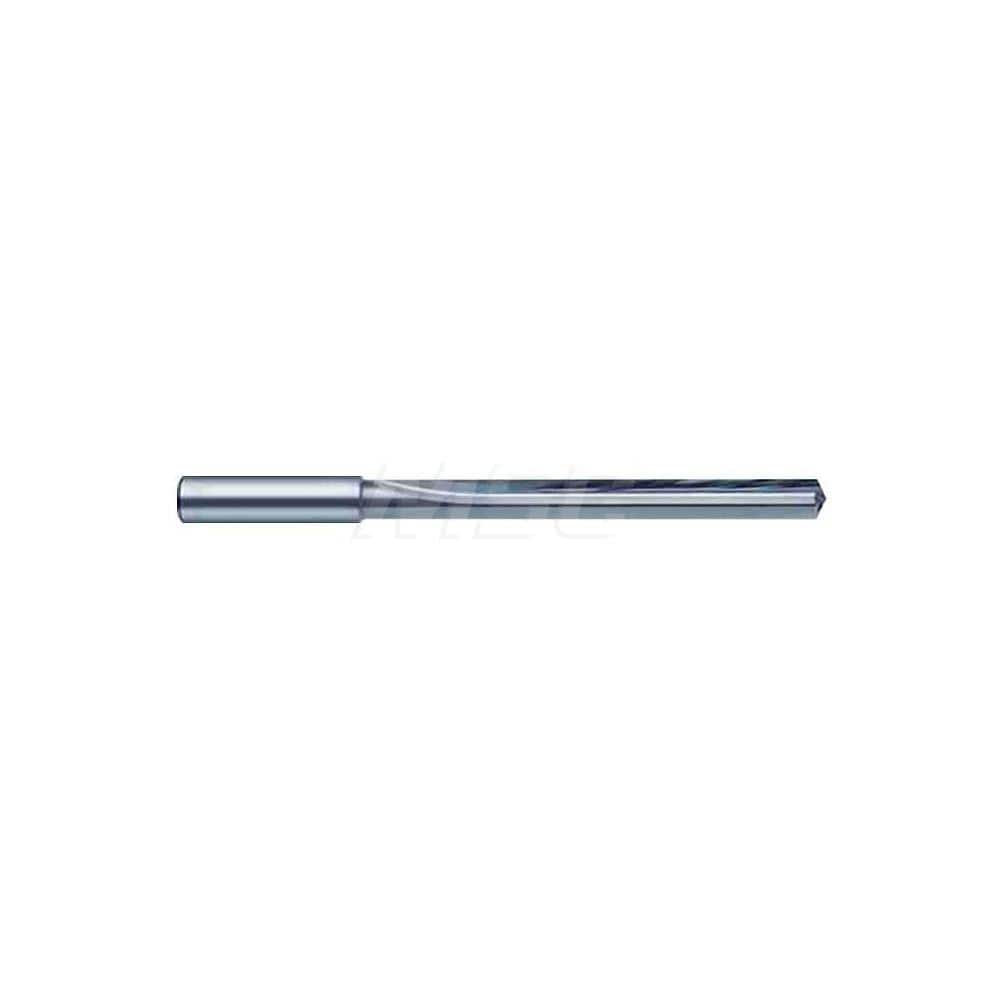

Die Drill Bit: 0.3346″ Dia, 130 °, Solid Carbide Uncoated, Series 6069
Item #: 53729265
Brand: Guhring
Model #: 9060690085000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 8.50 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (mm) | 95.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 139.00 |
| Shank Diameter (mm) | 10.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.3346 |
| Material Grade | Sub Micrograin |
| Series | 6069 |
| Number Of Flutes | 2 |
| Point Type | Special |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material | Cast Iron |
| Maximum Drilling Depth (Decimal Inch) | 3.2380 |
| Maximum Drilling Depth (mm) | 82.25 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 7xD |
