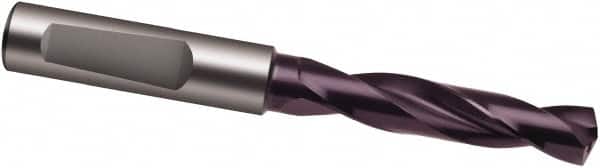

Screw Machine Length Drill Bit: 0.6299″ Dia, 140 °, Solid Carbide FIREX Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, Series 5610
Item #: 53735494
Brand: Guhring
Model #: 9056100160000
Product Specifications
| Drill Bit Size (mm) | 16.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | FIREX |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Whistle Notch |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 16.00 |
| Series | 5610 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 65.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
| Specification Designation | DIN |
| Material Grade | K40 |
