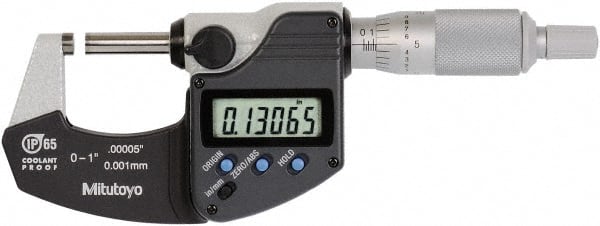

Mitutoyo - 0 to 1 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer - 0.0001 Inch Accuracy, Ratchet Stop Thimble, Rotating Spindle, SR44 Battery, Includes NIST Traceability Certification
Item #: 53765269
Brand: Mitutoyo
Model #: 293-340-30CAL
Exact Tooling IR#: 04
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They may cause microshocks and require two hands to make a measurement.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 25.40 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Thimble Type | Ratchet Stop |
| Traceability Certification Included | NIST |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000050 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | Yes |
| Data Output | No |
| Battery Type | SR44 |
