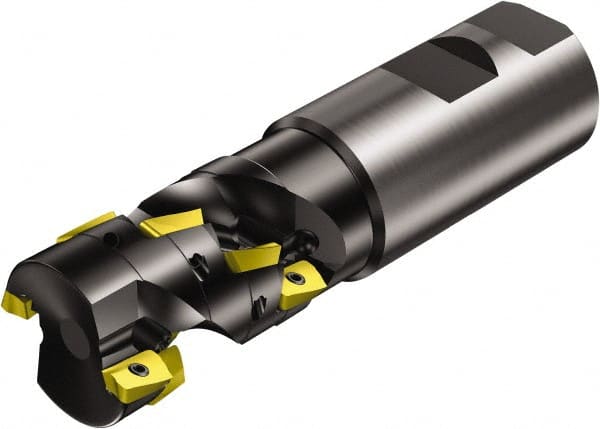

Sandvik Coromant - 1-1/4" Cut Diam, 1.77" Max Depth of Cut, 1-1/4" Shank Diam, 4.663" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Series CoroMill 390
Item #: 53795217
Brand: Sandvik Coromant
Model #: 5740192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.6630 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.7700 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA390-032M32-45L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.2587 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-11 T3 04M-PM; R390-11 T3 08E-PL; R390-11 T3 08M-PM; R390-11 T3 16E-PM; R390-11 T3 16M-KM; R390-11 T3 16M-PM |
| Shank Length (Decimal Inch) | 2.4043 |
| Maximum RPM | 21700 |
| Toolholder Material | Steel |
