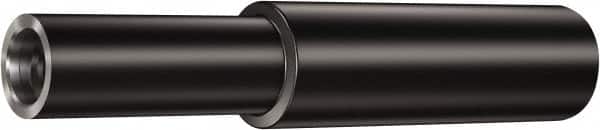

Sandvik Coromant - Coromant EH 1/2" Straight Shank Milling Tip Insert Holder & Shank - 1/4" Projection, 0.483" Neck Diam, E12 Neck Thread, 12.2mm Nose Diam, 3" OAL, Steel AExx-Axx..SS Tool Holder
Item #: 53801239
Brand: Sandvik Coromant
Model #: 5721509
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Coromant EH |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5 |
| Projection (Inch) | 1/4 |
| Projection (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.4803 |
| Neck Thread Size | E12 |
| Nose Diameter (mm) | 12.20 |
| Nose Diameter (Decimal Inch) | 0.4803 |
| Toolholder Material | Steel |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.2500 |
| Effective Length (mm) | 6.35 |
| Maximum Diameter (mm) | 12.20 |
| Maximum Diameter (Decimal Inch) | 0.4803 |
| Shank Material | Steel |
| Shank Shape | Round |
| Thread Size Connection to Tip | E12 |
| Toolholder Style | AExx-Axx..SS |
