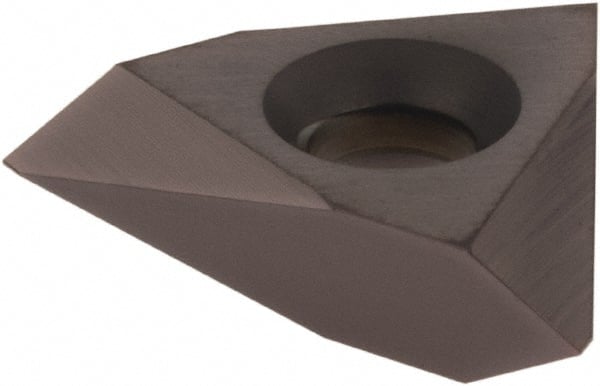

TNMC54NV AC50E Carbide On-Edge Threading Inserts AlTiN Finish, Neutral Cut, Internal/External, 60° V, 4-20 Int TPI, 4-20 Ext TPI, 5/8″ Inscribed Circle, 1/4″ Thick
Item #: 53817011
Brand: Tool-Flo
Model #: 0153000AC50E
Product Specifications
| Insert Style | TNMC |
| Insert Size | 54 |
| Insert Size Code | 54 |
| Thread Type | Internal & External |
| Insert Material | Carbide |
| Cutting Direction | Neutral |
| Coated | Coated |
| Thread Standard | 60? V |
| Manufacturer Grade | AC50E |
| Manufacturer's Grade | AC50E |
| Internal Threads Per Inch | 4.0-20.0 |
| External Threads Per Inch | 4-20 |
| Thread Standard | 60?? V |
| Internal Threads Per Inch | 4.0 - 20.0 in |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| External Threads Per Inch | 4 - 20 in |
| Thickness (Decimal Inch) | 0.2500 |
| Rake | Neutral |
| Material | Carbide |
| Coating | AlTiN |
| Series | On-Edge |
| Coating Process | PVD |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0000 |
