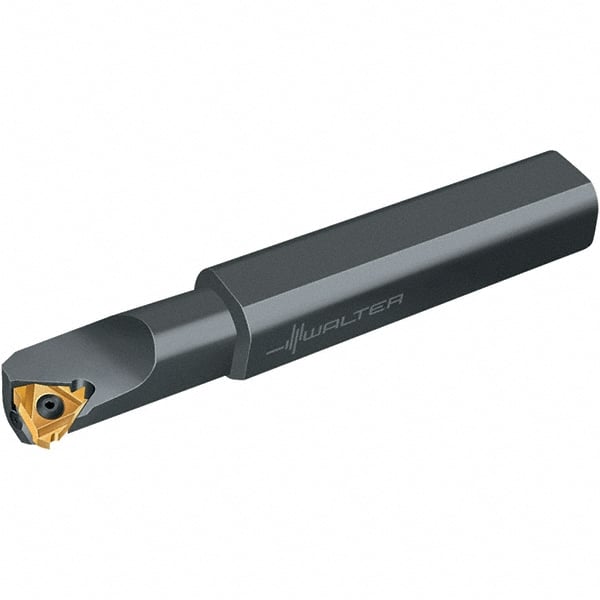

Walter - Internal Thread, Right Hand Cut, 20mm Shank Width x 18mm Shank Height Indexable Threading Toolholder - 180mm OAL, NTSI..-11 Insert Compatibility, A..-NTS-I Toolholder
Item #: 53823795
Brand: Walter
Model #: 6039370
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Overall Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 180.00 |
| Insert Compatibility | NTSI..-11 |
| Toolholder Style | A..-NTS-I |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 7.30 |
| Center to Cutting Edge (Decimal Inch) | 0.2874 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Shank Length (Decimal Inch) | 6.1024 |
| Minimum Bore Diameter (Decimal Inch) | 0.4724 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
