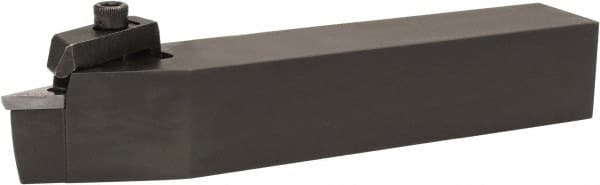

Hertel - VPGR.33., 0° Lead Angle IVVC External Neutral Indexable Profiling Toolholder - 1" Shank Height x 1" Shank Width, 6" Long, Steel
Item #: 53830170
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Neutral |
| Rake | Neutral |
| Insert Compatibility | VPGR.33. |
| Toolholder Style | IVVC |
| Series | HertelNotch |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Clamp |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5220 |
| Head Length (Decimal Inch) | 1.6200 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
