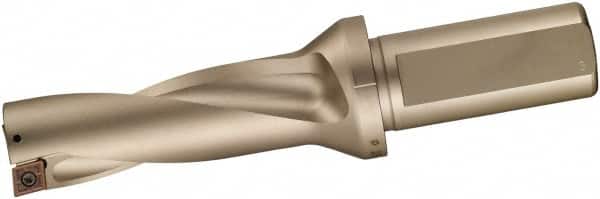

Sumitomo - 144mm Max Drill Depth, 2xD, 68mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 53937777
Brand: Sumitomo
Model #: 2A00391
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 68.00 |
| Drill Diameter (Decimal Inch) | 2.6772 |
| Maximum Drill Depth (mm) | 144.00 |
| Maximum Drill Depth (Decimal Inch) | 5.6693 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 246.00 |
| Overall Length/Projection (Decimal Inch) | 9.6850 |
| Insert Compatibility | WDXT 186012 |
| Flute Length (mm) | 144.00 |
| Flute Length (Decimal Inch) | 5.6693 |
| Body Length (Decimal Inch) | 6.9291 |
| Body Length (mm) | 176.00 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Collar Diameter (mm) | 66.00 |
| Collar Diameter (Decimal Inch) | 2.5984 |
| Series | SumiDrill |
