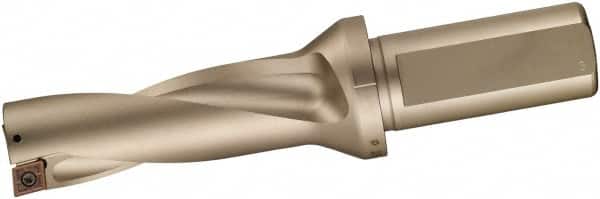

Sumitomo - 109mm Max Drill Depth, 2xD, 52mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 53938213
Brand: Sumitomo
Model #: 2A00289
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 52.00 |
| Drill Diameter (Decimal Inch) | 2.0472 |
| Maximum Drill Depth (mm) | 109.00 |
| Maximum Drill Depth (Decimal Inch) | 4.2913 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 209.00 |
| Overall Length/Projection (Decimal Inch) | 8.2283 |
| Insert Compatibility | WDXT 156012 |
| Flute Length (mm) | 109.00 |
| Flute Length (Decimal Inch) | 4.2913 |
| Body Length (Decimal Inch) | 5.4724 |
| Body Length (mm) | 139.00 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Collar Diameter (mm) | 50.50 |
| Collar Diameter (Decimal Inch) | 1.9882 |
| Series | SumiDrill |
