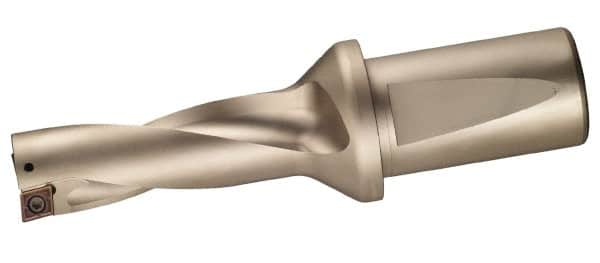

Sumitomo - 5.261" Max Drill Depth, 3xD, 1-11/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 53938577
Brand: Sumitomo
Model #: 2A00W3Q
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (Inch) | 1-11/16 |
| Drill Diameter (Decimal Inch) | 1.6875 |
| Maximum Drill Depth (Decimal Inch) | 5.2610 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 9.4420 |
| Insert Compatibility | WDXT 125012 |
| Flute Length (Decimal Inch) | 5.2610 |
| Body Length (Decimal Inch) | 6.4420 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.9490 |
| Series | SumiDrill |
