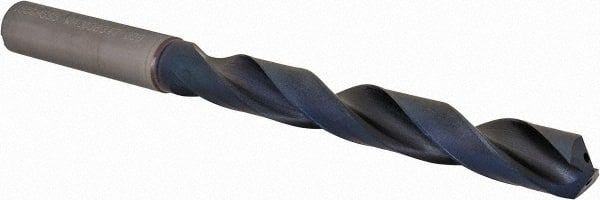

Sumitomo - 15.5mm 135° Solid Carbide Jobber Drill
Item #: 53940433
Brand: Sumitomo
Model #: 5VHY267
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 124.00 |
| Flute Length (Decimal Inch) | 4.8819 |
| Overall Length (mm) | 194.00 |
| Overall Length (Decimal Inch) | 7.6378 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 66.00 |
| Shank Length (Decimal Inch) | 2.5984 |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Series/List | MDW-HGS |
