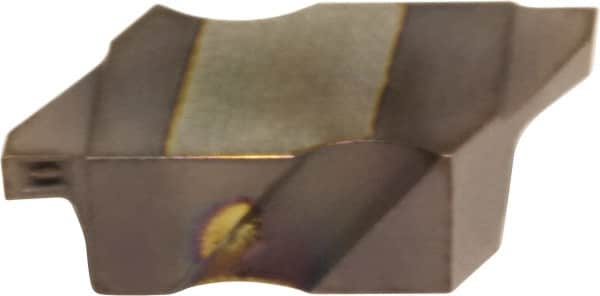

Sumitomo - 2078SG CB Grade EH520V, 0.078" Cutting Width Carbide Grooving Insert - 0.11" Max Depth of Cut, Neutral, TiAlN Finish
Item #: 53948758
Brand: Sumitomo
Model #: U102060
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SG |
| Insert Size | 2078 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0780 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | EH520V |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2190 |
| Chipbreaker | CB |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Series | SumiNotch |
| Overall Width (Decimal Inch) | 0.1500 |
