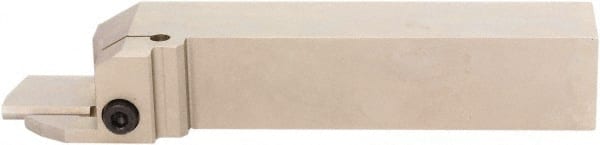

Sumitomo - GNDL, External, Left Hand, 2.2mm Max Depth of Cut, Indexable Grooving Tool Holder - GCMN, GCML, GCMR Insert Compatibility, 1-9/16" Shank Height, 1-9/16" Shank Width, 6" OAL
Item #: 53956736
Brand: Sumitomo
Model #: 2600AKE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GNDL |
| Insert Compatibility | GCMN; GCML; GCMR |
| Shank Height (Inch) | 1-9/16 |
| Shank Width/Diameter (Inch) | 1-9/16 |
| Series | GND |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | 25 |
| Number of Inserts Used on Toolholder | 1 |
