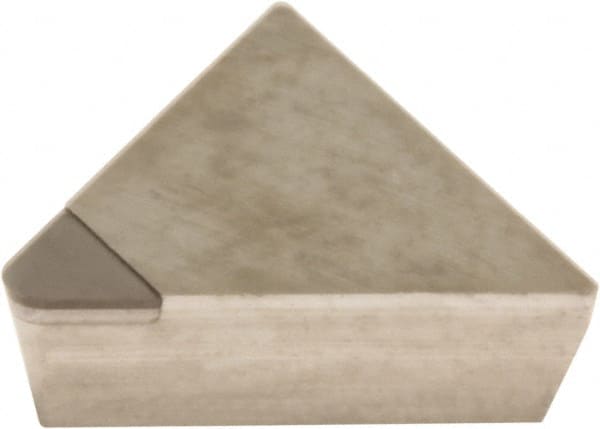

Sumitomo - NF-TPG320.5 Grade DA1000 Polycrystalline Diamond (PCD) Turning Insert - 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 0.0078" Corner Radius
Item #: 53957981
Brand: Sumitomo
Model #: 16HQCJL
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | NF-TPG |
| Insert Size | 320.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | DA1000 |
| Rake | Positive |
| Rake Angle | 11 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
