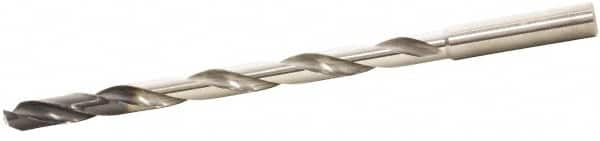

Extra Length Drill Bit: 0.4724″ Dia, 140 °, Solid Carbide DEX Finish, 6.2205″ Flute Length, Straight-Cylindrical Shank, Series MDW-XHV
Item #: 53959110
Brand: Sumitomo
Model #: U101249
Product Specifications
| Drill Bit Size (mm) | 12.00 |
| Overall Length (mm) | 217.00 |
| Flute Length (mm) | 158.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | DEX |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | MDW-XHV |
| Tool Application | Deep Hole Drilling |
| Drill Bit Diameter Tolerance | +0.000 to -0.012 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Primary Workpiece Material | Ductile Iron; Hardened Steel |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Flute Length (Decimal Inch) | 6.2205 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 161.00 |
