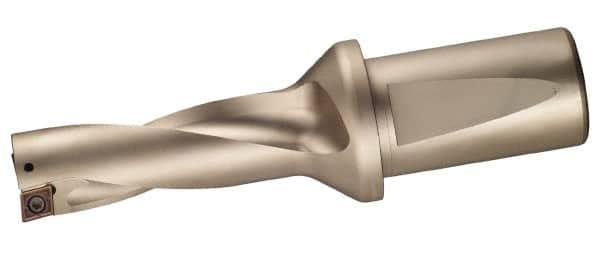

Sumitomo - 94mm Max Drill Depth, 3xD, 30mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 53961538
Brand: Sumitomo
Model #: 2A00154
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 30.00 |
| Drill Diameter (Decimal Inch) | 1.1811 |
| Maximum Drill Depth (mm) | 94.00 |
| Maximum Drill Depth (Decimal Inch) | 3.7008 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 188.00 |
| Overall Length/Projection (Decimal Inch) | 7.4016 |
| Insert Compatibility | WDXT 094008 |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7008 |
| Body Length (Decimal Inch) | 4.6457 |
| Body Length (mm) | 118.00 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Collar Diameter (mm) | 54.00 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Series | SumiDrill |
