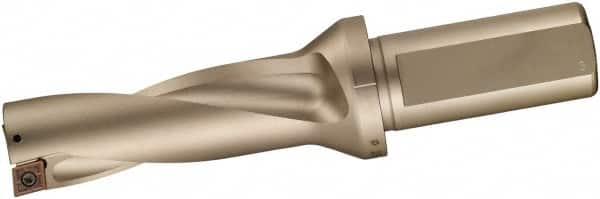

Sumitomo - 49mm Max Drill Depth, 2xD, 23mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 53962221
Brand: Sumitomo
Model #: 2A00110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 23.00 |
| Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Depth (mm) | 49.00 |
| Maximum Drill Depth (Decimal Inch) | 1.9291 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 123.00 |
| Overall Length/Projection (Decimal Inch) | 4.8425 |
| Insert Compatibility | WDXT 073506 |
| Flute Length (mm) | 49.00 |
| Flute Length (Decimal Inch) | 1.9291 |
| Body Length (Decimal Inch) | 2.6378 |
| Body Length (mm) | 67.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 37.00 |
| Collar Diameter (Decimal Inch) | 1.4567 |
| Series | SumiDrill |
